Core Switch
- Using the Intelligent Resilient Framework 2 (IRF2) as the system foundation of the virtualization software system
- Supporting technologies required by cloud data centers, for example, TRILL, EVB, and FCoE
- Fully compatible with 40GE and 100GE Ethernet standards
Integrating multiple network services such as IPv6, network security, wireless control, and passive optical networks - Providing multiple high availability technologies such as non-stop forwarding, non-stop upgrade, graceful restart, and ring network protection. This improves production efficiency of users and ensures a maximum normal operation time of the network, thereby lowering the total costs of ownership (TCOs) for customers
Aggregation Switches Managed Switches
|
Switching capacity |
256 Gbit/s |
|
Packet forwarding rate |
132 Mpps |
|
Fixed port |
48 x 10/100/1000Base-T electrical port 4 x 10G BASE-X SFP+ optical port |
|
Link aggregation |
Supports the following link aggregation features: ●GE/10GE port aggregation ●Dynamic aggregation ●Cross-device aggregation |
|
Port |
Supports the following port features: ●IEEE802.3x-based traffic control (full duplex) ●Storm suppression based on port rate percentage ●PPS-based and BPS-based storm suppression |
Aggregation Switches Managed Switches
|
Interfaces |
1000M SFP port x 16 Combo 1000BASE-T/SFP port x 8 |
|
Management Ports |
One Console port |
|
Reset Button |
One Restore Factory Default Button |
|
Switching Capacity |
350Gbps |
|
Packet Forwarding Rate |
35.7Mpps |
|
Working Temperature |
-10~55°C |
|
Storage Temperature |
-40~70°C |
|
Operating Humidity |
5%~95% Non-condensing |
|
Dimensions |
440(L)×285(W)×44.5(H)mm |
|
Weight |
<5Kg |
|
Input Voltage |
AC: 110~240V/50~60Hz |
|
Power Consumption |
<50W |

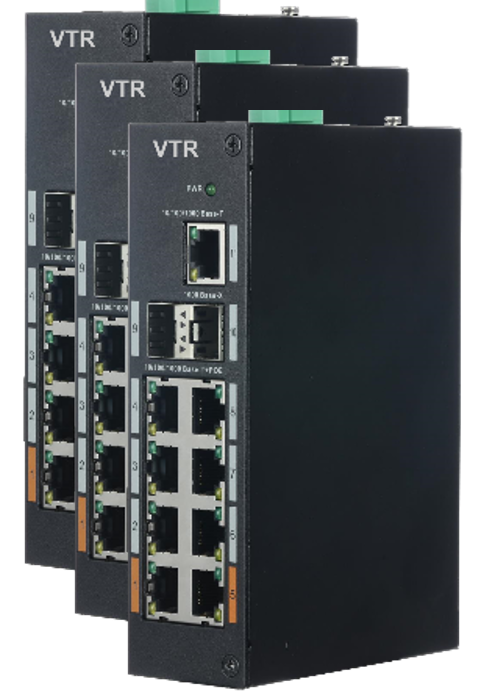

PoE Industry switch
|
Ethernet Port |
8*10/100/1000Mbps Base-T (PoE power supply) 1*10/100/1000 Mbps Base-T 2*1000Mbps Base-X |
|
PoE Power Consumption |
Port1&5 ≤60W, Port2~4&Port6~8≤30W, Total power≤120W |
|
PoE Protocol |
IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
|
Switching Capacity |
33Gbps |
|
Packet Forwarding Rate |
16.37Mpps |
|
Packet Buffer Memory |
1.75Mb |
|
MAC Table Size |
4K |
|
Flow Control |
Enable by default |
|
Application Humidity |
10%~90% |
|
Power |
DC48~57V |
|
Lightning Protection |
Common Mode 4KV Differential Mode 2KV |
|
ESD |
Contact discharge: ±6kV Air discharge: ±8kV |
|
Working Temperature |
-30°C~65°C |
|
Weight |
0.62kg |
|
Dimension(W×D×H) |
150mm×110mm×42mm |
