Management Servers

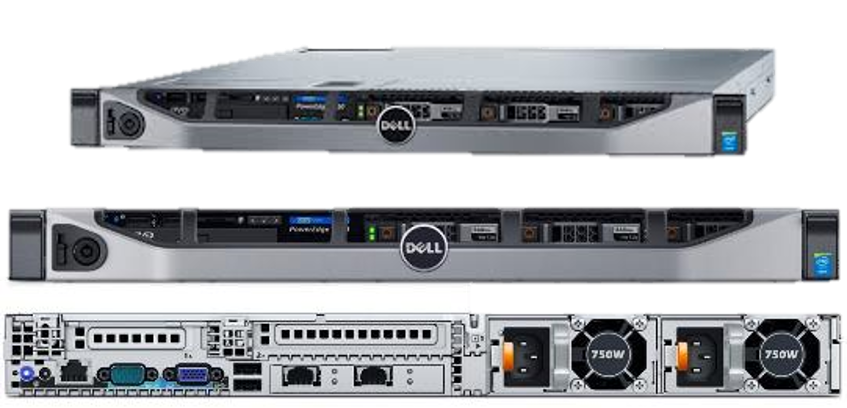

Search - PowerEdge R630 Server Intel(R) Xeon(R) E5-2640 v3 2.6GHz,20M Cache,8.00GT/s QPI,Turbo,HT,8C/16T (90W) 2, 8GB RDIMM 2133MT/s, Dual Rank,x8 Data Width Built in 1, 1TB 7.2 RPM NLSAS 6Gbps 2.5in Hot-plug Hard Drive, up to 8, 3.5in Cabled Hard Drives Up to 4 network ports

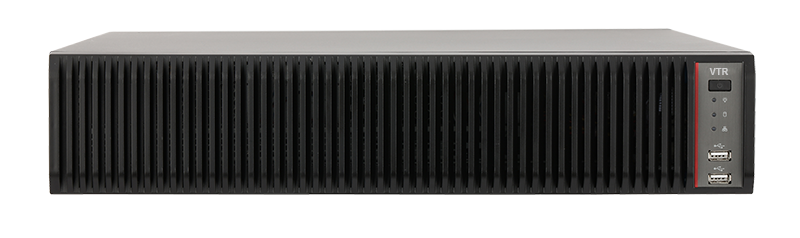

AI Network Video Recorder



VTI-IVSFR008-FR-18

  • Intel dual-core processor
  • Max 400Mbps incoming bandwidth
  • 128 Channel IP video access
  • Up to 4 Channel back end face recognition
  • Regular/stranger mode
  • Search by image
  • Face database management
  • Supports RAID 0/1/5/6/10
  • 3HDMI/2VGA video output



Platform Management Servers

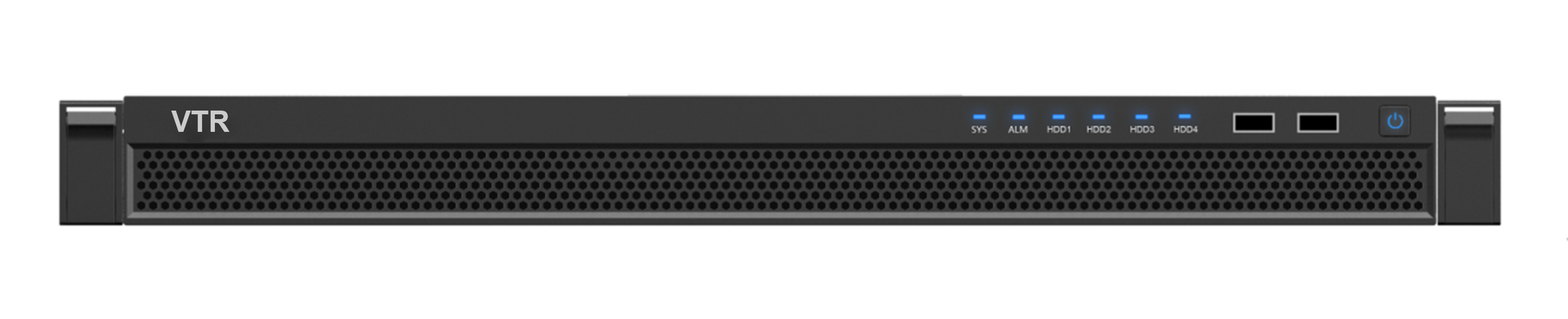

General Surveillance Management Center

VTI-ITPL-7600-16

  • Embedded Linux System, C/S Architecture
  • Supports 7*24 stable operation
  • Supports distribute and cascade deployment
  • Supports hot standby for master server
  • Supports N+M hot standby for slave server

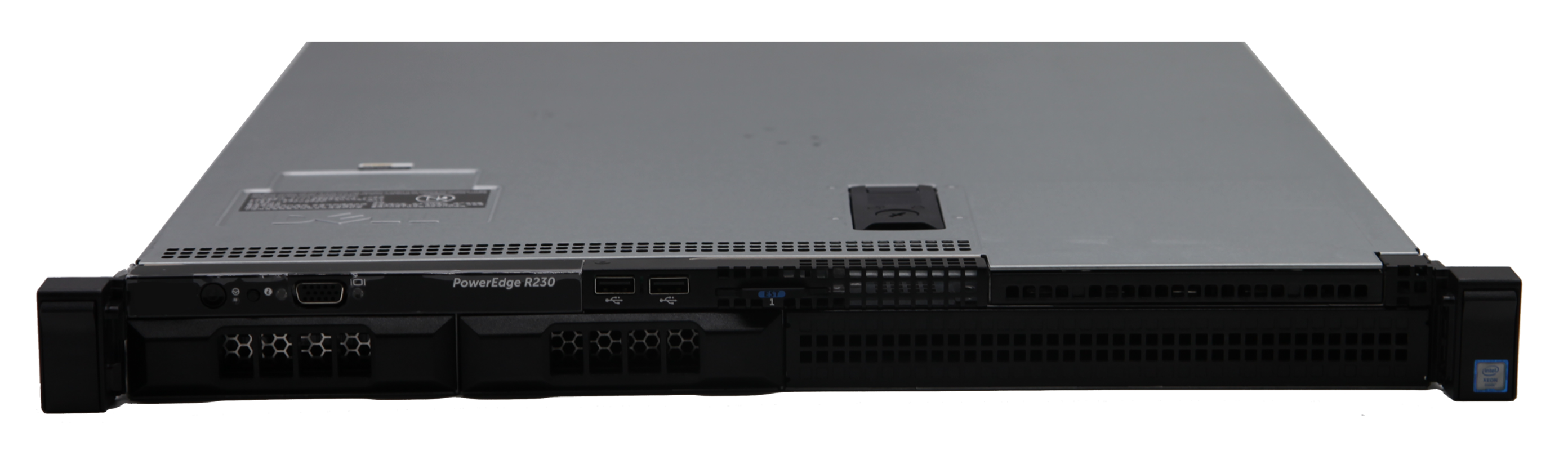

IVS Servers



VTI-IVS-3L500C/IVS-FR

System

Main Processor

Intel Xeon E3-1220 v5 3.0GHz

Operating System

Windows Embedded

Memory

8GB

HDD

1TB

Interface

Ethernet Port

2*1000Mbps Ethernet Port

Other Port

4*USB 3.0, 2*VGA Port, 1*HDMI Port

Others

Power

250W

Work Temperature

10°C—35°C

Work Humidity

10%—80%

Storage Temperature

-40°C—65°C

Storage Humidity

5%—95% (non-condensation)

Dimension

495mm*42.8mm*434mm



Storage Servers

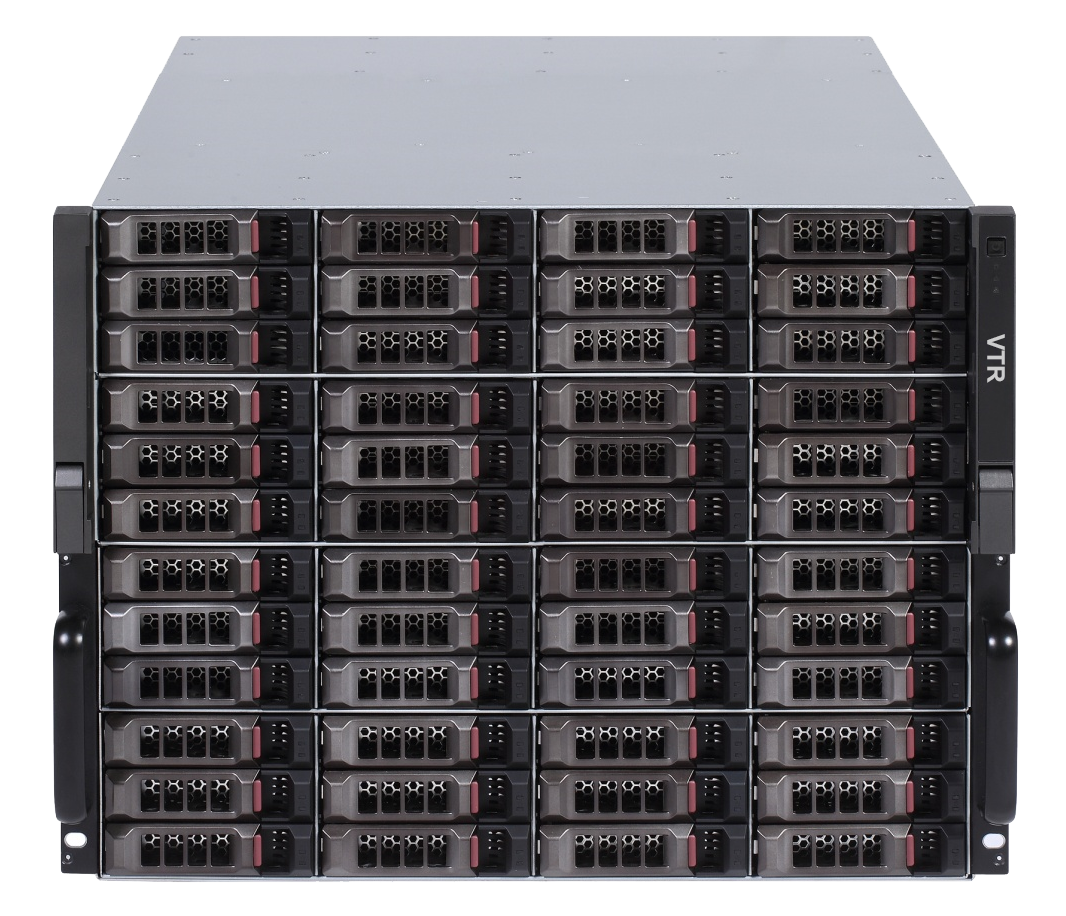

48-HDD Central Video Storage Server

VTI-ITST-51248S-17

  • Intel Processor
  • Max 512 IP Camera Inputs
  • Max 1024Mbps Incoming/recording Bandwidth
  • 48 HDDs, SATA, Hot-Swap
  • Supports RAID 0/1/3/4/5/6/10/50/60/JBOD, Hotspare
  • iSCSI and Mini SAS for Expanded Storage Space
  • Support standard iSCSI Protocol Storage
  • Modular&Cableless Design
  • Redundant Power
